High-Capacity Adjustable Wheelbase

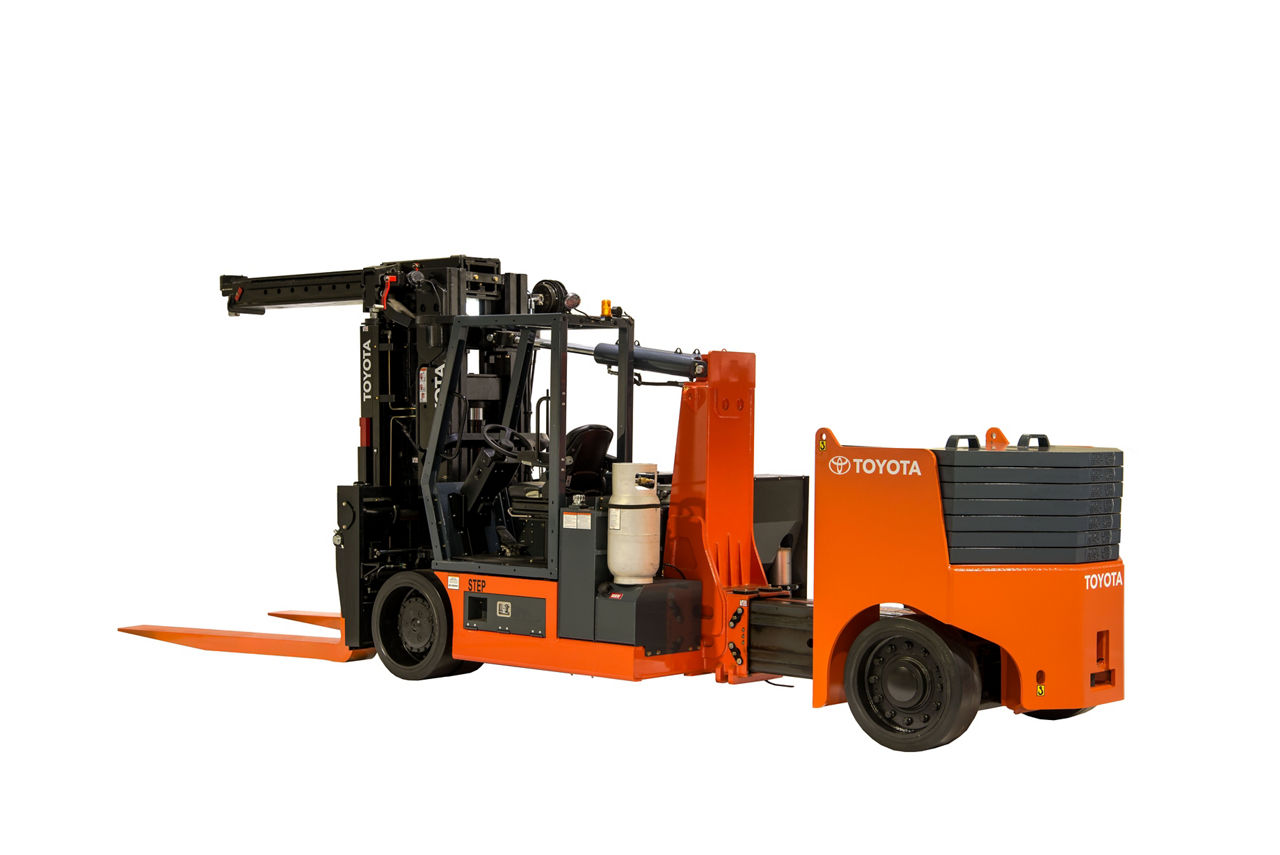

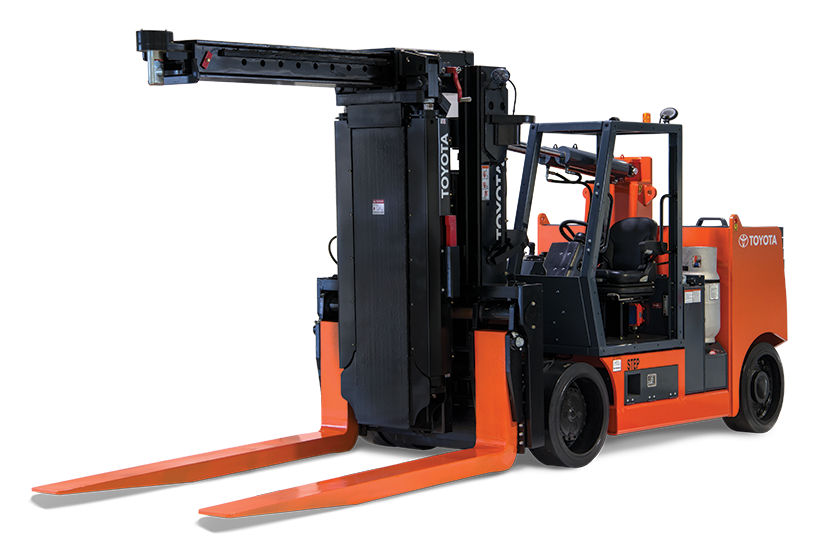

The Toyota High-Capacity Forklift with Adjustable Wheelbase is a master of flexibility. This sit down counterbalanced forklift allows operators to make adjustments to varying load weights with an extendable counterweight that includes removable slabs. Need to move a big, awkward item? The multi-stage telescopic boom is able to safely and efficiently move large equipment such as industrial machinery or massive engines.

Specs

High-Capacity Adjustable Wheelbase Specifications

Learn more about the current Toyota High-Capacity Adjustable Wheelbase models that are available for purchase.

25,000 - 80,000

Load Capacity

(lbs.)

3

Available Models

81 – 110

HP

Length to Forkface

129.44 - 193.13 in.

Overhead Guard Height

86.79 - 98.06 in.

Overall Width

62 - 84 in.

Models for High-Capacity Adjustable Wheelbase

Model Load Capacity (lbs.) Max Lift Speed Full Load (FPM) Basic Right Angle Stack (in.) Mast/Boom Extended Height (in.) Max Lift Height (in.)
THDA25/35 25,000 - 35,000 23 140 - 173 264 95
THDA40/60 40,000 - 60,000 N/A 168.9 - 213.9 306.31 104.5
THDA60/80 60,000 - 80,000 N/A 207.63 - 260.26 322.88 107

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Performance

Forward-Thinking Flexibility

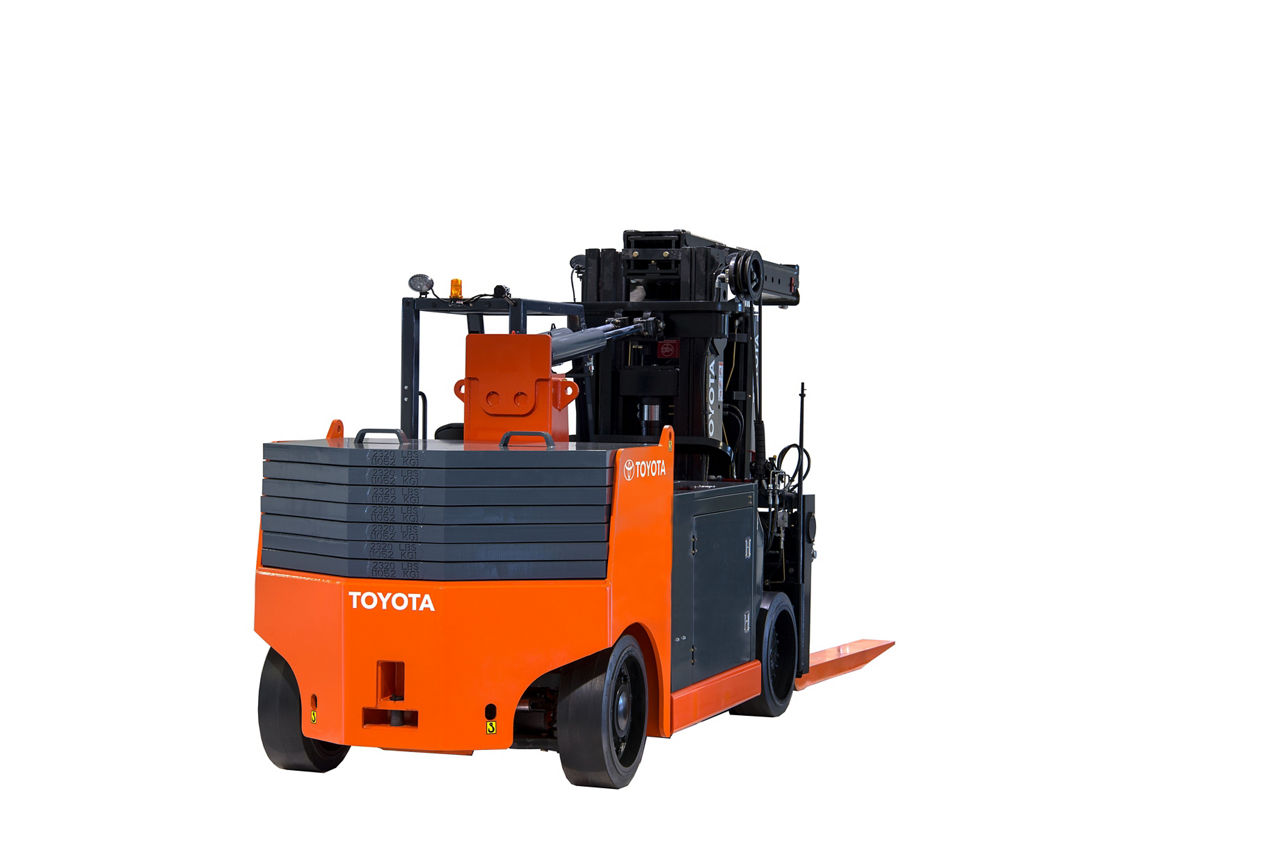

A horizontally adjustable counterweight makes the High-Capacity Adjustable Wheelbase one of the most versatile forklifts in the industry. With just the push of a button, the counterweight can extend out hydraulically to dramatically improve the forklift’s maximum lifting capacity.



Need to navigate through a tight spot? Press another button, and the counterweight can be retracted just as quickly and easily, providing optimum mobility for the job at hand. Throw in a maximum lifting capacity of up to 80,000 lbs., and you have the perfect combination of power and finesse to handle the most diverse and challenging tasks imaginable.

High-Capacity Adjustable Wheelbase Features

The heart and soul of every IC forklift is its drivetrain. Toyota’s High-Capacity Adjustable Wheelbase models are designed to provide the performance you need and the ability to fine-tune it based on the specific needs of your operation.

Handling large, heavy loads in close quarters requires precision and expert control. That’s why Toyota’s remote control option is available on all High-Capacity Adjustable Wheelbase models. With a remote control, operating the forklift from the compartment can be a thing of the past. Control of all forklift functions, including traveling, lifting, lowering, steering, and operating the counterweight extension, can be handled from an intuitive and easy-to-use handheld device, making precise positioning of delicate, bulky loads a breeze. A waist/shoulder strap attaches to the remote control, ensuring optimal operator comfort. When the remote control is not in use, it can be safely stored in the conveniently located storage compartment.

The most powerful forklifts in the industry just got smarter. The innovative MD4 display boasts 7 inches of total display space and is the first-ever touch screen display on a Toyota Forklift. Industry-leading functionality puts all the tools you need at your disposal. Access hydraulic schematics, wiring diagrams, and even operator and repair manuals with just the press of a button. Need to view critical information such as travel speed, engine oil pressure, or fuel level? The MD4 display is your glance-and-go solution for all these and more.

Compare Models

Toyota Forklifts

Compare forklifts similar to the 3-Wheel Electric Forklift

This Product

Main product
High-Capacity Adjustable Wheelbase

Options / Accessories

Popular High-Capacity Adjustable Wheelbase Accessories

Make the most of your High-Capacity Adjustable Wheelbase by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Rear Camera

The rear-view camera system provides the driver with a direct view of the floor behind the truck, revealing dead spots and obstacles, preventing damage.

Rear Camera

360 Degree Operating Camera

The 360 Operating Camera gives you the ability to view multiple areas around the forklift to assist in tight environments.

mobile mast-retractable-trolley-close-up-multifunction controls

Forward Camera

The front-view camera system provides the driver with a direct view of the floor in front of the truck, revealing dead spots and obstacles, preventing damage.
Remote Control
