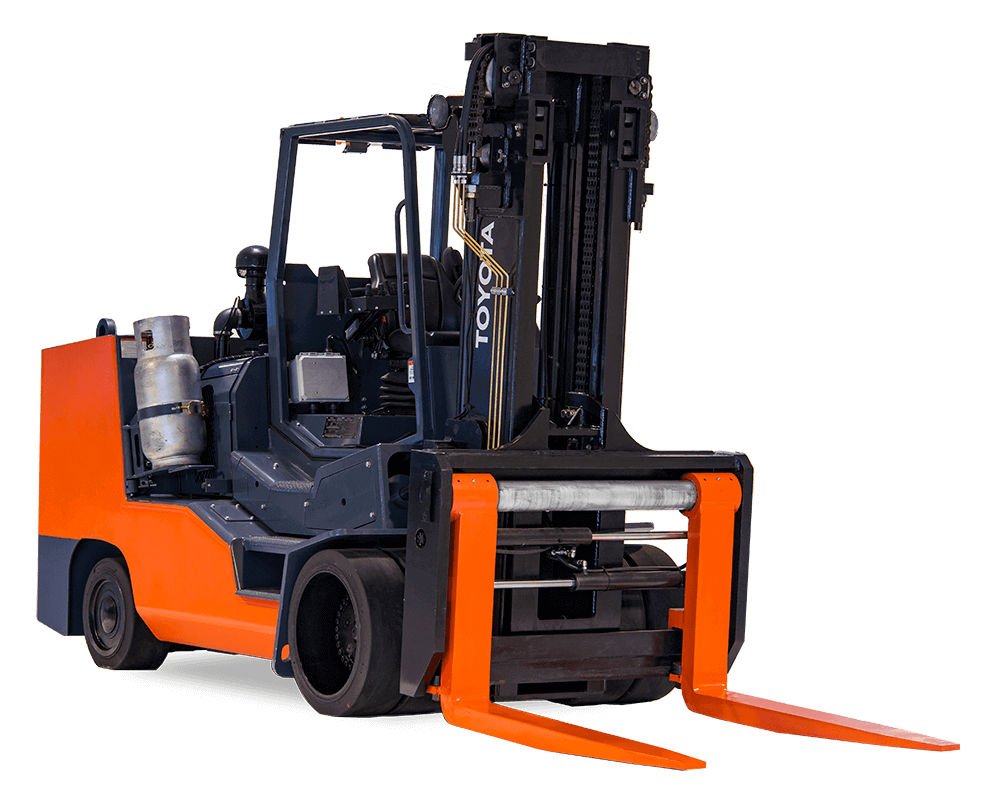

High-Capacity Large IC Cushion Forklift

Toyota knows that sometimes hauling high-capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and for moving steel inside manufacturing facilities, it gives you the ability to lift up to 80,000 lbs. of the toughest loads around. And with one of the leading engines in its class, the Toyota High-Capacity Large Cushion Forklift is as dependable as it is strong.

Special Features
  • 25,000 - 80,000 lb. Lifting Capacity
  • High-Capacity Cooling System
  • 5.7 L V8 Engine

Specs

High-Capacity Large IC Cushion Forklift Specifications

Learn more about the current Toyota High-Capacity Large IC Cushion Forklift models that are available for purchase.

25,000 - 100,000

Load Capacity

(lbs.)

9.7 - 10.3

Travel Speed Full Load

(MPH)

13

Model Available

Length to Forkface

136 - 184 in.

Overhead Guard Height

103.6 - 118.8 in.

Overall Width

62 - 85.5 in.

 Large Capacity Large Cushion IC Width 4x

Models for High-Capacity Large Cushion Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
THDC2500-24 25,000 9.7 61 73.7 167
THDC2500-30 25,000 9.7 61 69.9 167.1
THDC3000-30 30,000 9.7 61 64.7 174
THDC3000-24 30,000 9.7 61 67.1 167
THDC3000-36 30,000 9.7 58 61.2 174.3
THDC3500-24 35,000 9.7 58 62.9 174.3
THDC4000-30 40,000 9.7 41 49.8 184.2
THDC4000-36 40,000 9.7 41 47.4 186
THDC4500-30 45,000 9.7 41 46.6 186
THDC4500-36 45,000 10.3 20 35.3 217.5
THDC5000-30 50,000 10.3 20 34.7 217
THDC5000-36 50,000 10.3 20 33.3 217.5
THDC5500-36 55,000 10.3 20 31.5 217.5

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Performance

World-Class Weight Lifter

The High-Capacity Large IC Cushion Forklift is king when it comes to heavy lifting indoor tasks. Whether steel needs moved or engines need shipping, the High-Capacity Large IC Cushion Forklift is ready to muscle its way through your daily task list. This forklift has the power of a V8 engine and Dana Transmission with three forward and reverse speeds, along with engine diagnostics and support systems to back it all up.

High-Capacity Large IC Cushion Forklift Features

Toyota’s High-Capacity Large IC Cushion Forklift comes with a V8 LP engine and heavy-duty planetary drive axle. This product comes with a digital instrument display that gives fuel, engine, transmission, battery, service, and temperature information. The High-Capacity Large IC Cushion Forklift has a two-stage wide visible mast to provide unobstructed views so you can get work done.

Safety features on the High-Capacity Large IC Cushion Forklift include an operator presence sensing system (OPSS), which is built under the seat of the forklift and detects the operator’s presence while in operation. This forklift also includes a neutral safety switch, and an operator restraint system.

That strength comes with plenty of support. An engine management system protects your forklift and keeps delivering the same high-performance work you expect. The digital instrument display keeps you aware of the operating status. Standard fingertip controls provide convenient, comfortable control of all functions for operators, and the high-visibility design help keep operators aware of their surroundings.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the High-Capacity Large IC Cushion Forklift.

This Product

Main product
High-Capacity Large IC Cushion Forklift

Options / Accessories

Popular High-Capacity Large IC Cushion Forklift Accessories

Make the most of your High-Capacity Large IC Cushion Forklift by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Forward Camera

The front-view camera system provides the driver with a direct view of the floor in front of the truck, revealing dead spots and obstacles, preventing damage.

Public PNG Reach Stacker Close-up 3

Rear Camera

The rear-view camera system provides the driver with a direct view of the floor behind the truck, revealing dead spots and obstacles, preventing damage.

Rear Camera

Dual Camera

The dual camera system provides the driver with a direct view of the floor in front, and back of the truck, revealing dead spots and obstacles, preventing damage.

Dual Camera
