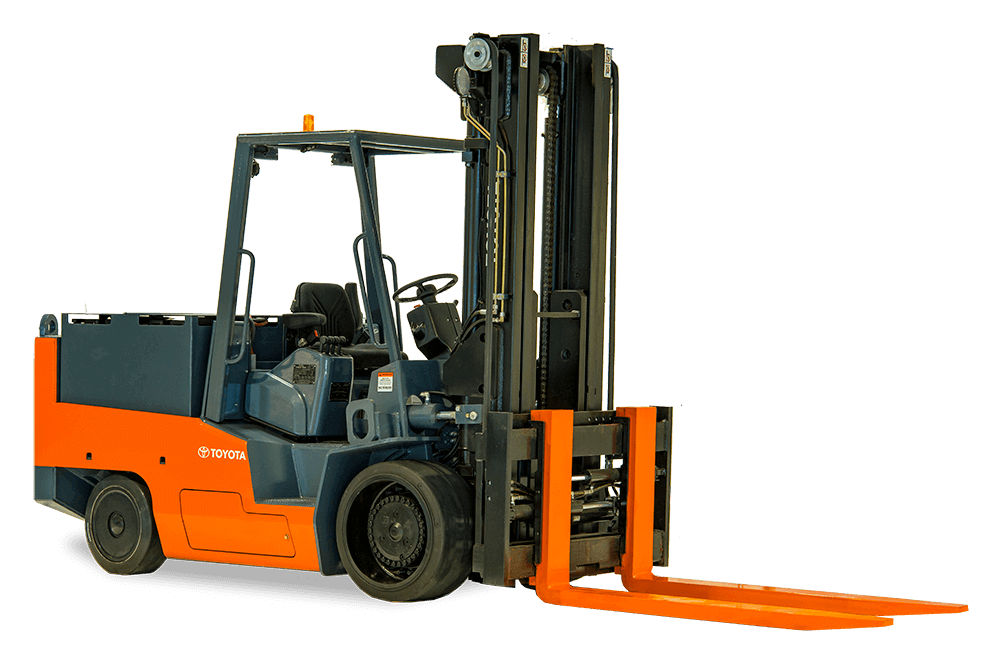

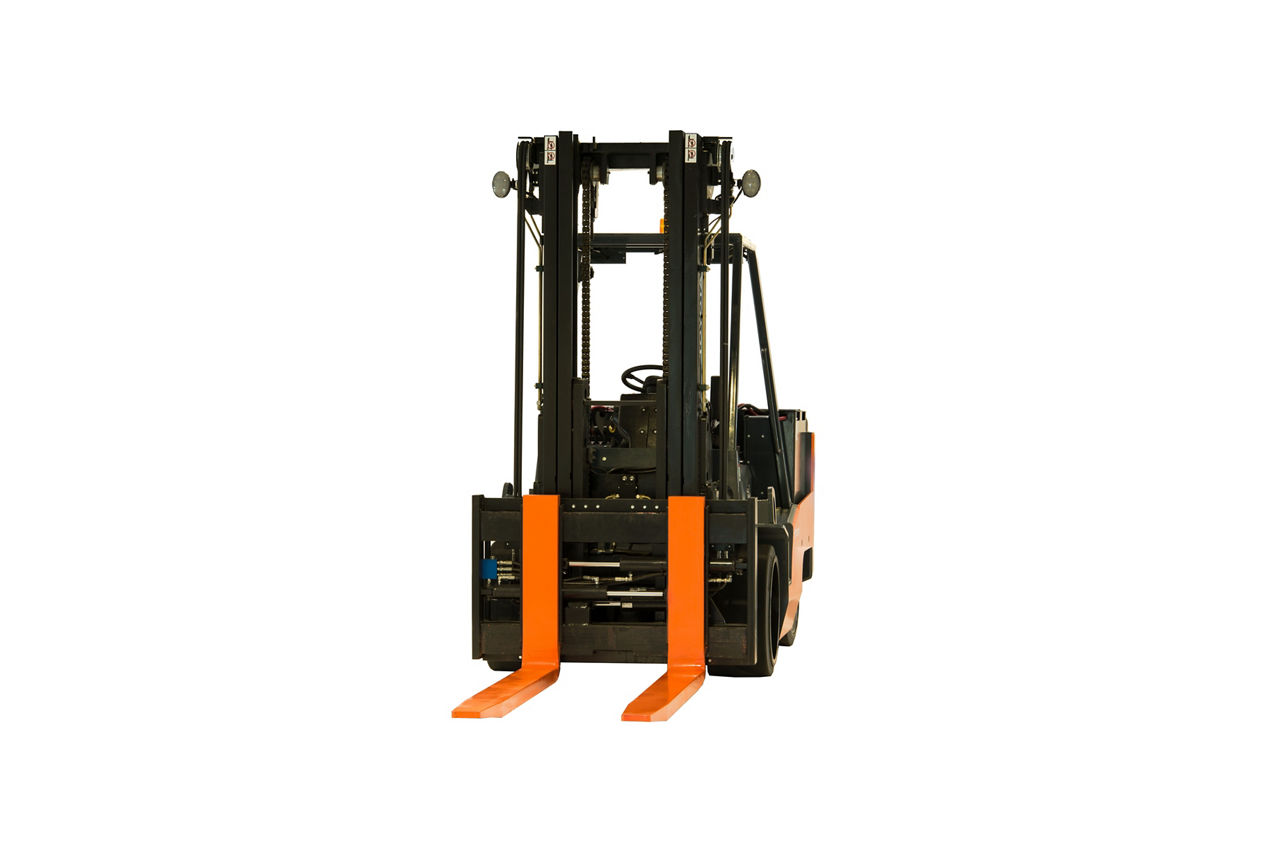

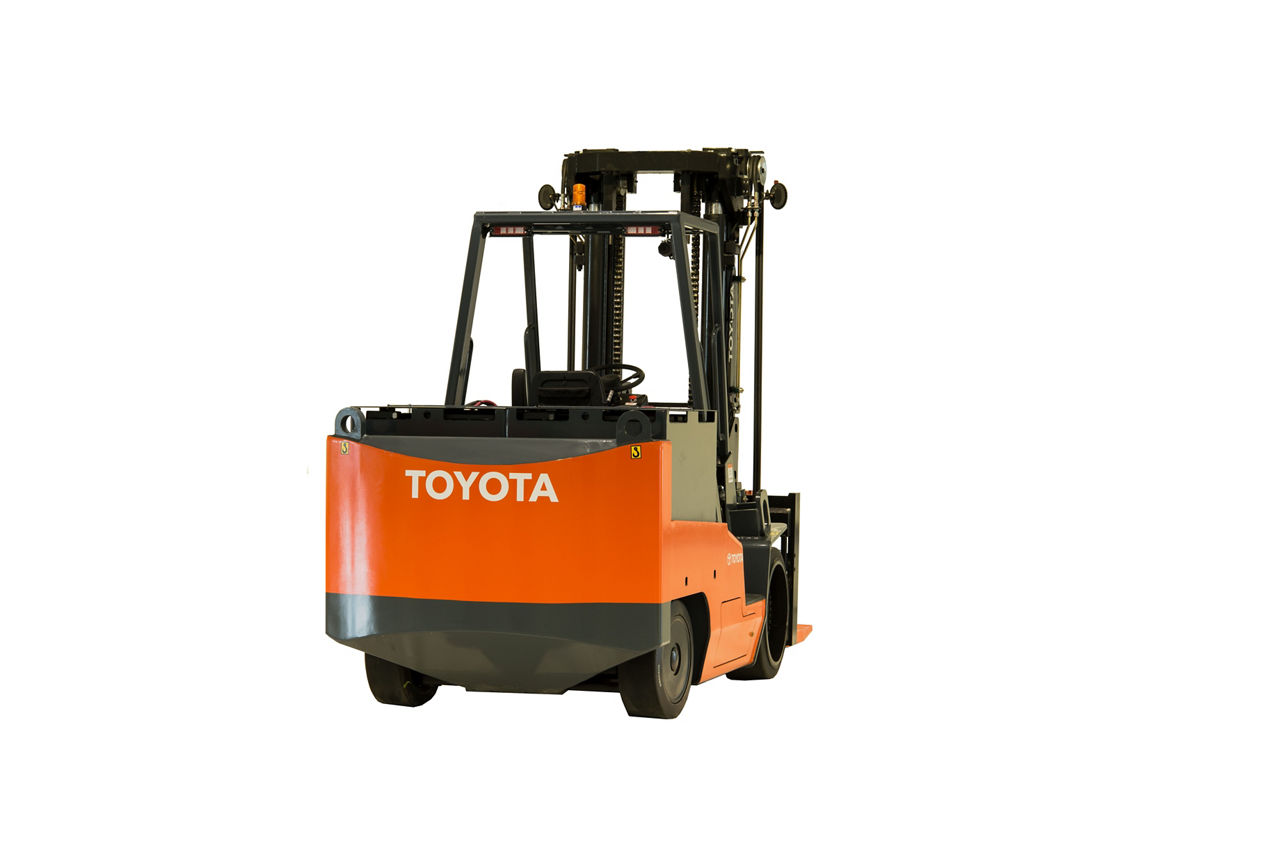

High-Capacity Electric Cushion Forklift

The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.

Special Features
  • 15,000-40,000 lb. Lifting Capacity
  • AC Drive and Pump Motors
  • 72- or 80-Volt Electrical System

Specs

High-Capacity Electric Cushion Specifications

Learn more about the current Toyota High-Capacity Electric Cushion models that are available for purchase.

15,000 - 40,000

Load Capacity

(lbs.)

3.7 - 5.2

Travel Speed Full Load

(MPH)

10

Model Types Available

Length to Forkface

125.93 - 155.59 in.

Overhead Guard Height

93.57 - 102.56 in.

Overall Width

62.99 - 72.44 in.

Width@4x High Capacity Electric Cushion

Models for High Capacity Electric Cushion Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
THDE1500-24 15,000 5.2 39.5 15 134
THDE1800-24 18,000 5 39.5 22.5 139.2
THDE2000-24 20,000 4.7 34.5 19.9 140
THDE2200-24 22,000 4.6 34.5 18.7 140
THDE3000-24 30,000 4.1 24 13.1 153.8
THDE3000-30 30,000 4.1 24 12.5 156.35
THDE3500-24 35,000 4 24 12 156.3
THDE3500-30 35,000 3.9 16 10.8 173.5
THDE4000-24 40,000 3.7 16 10.6 173.5
THDE4000-30 40,000 3.7 16 9.9 173.5

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Man driving Toyota High capacity electric cushion forklift and carrying 6 large metal rings in warehouse.

Performance

Large and In Charge

Think real power needs an IC engine? Think again. The impressive, dependable power of the Toyota High-Capacity Electric Cushion Forklift is your perfect answer for heavy lifting challenges. The biggest tasks in automotive, forging, and paper industries are no match for the High-Capacity Electric Cushion.

High-Capacity Electric Cushion Forklift Features

Toyota’s High-Capacity Electric Cushion Forklift comes with your choice of a 72 or 80-Volt battery and an easily accessible drive motor. This product comes with a load-sensing hydraulic system for optimal performance, transistor control monitors, heavy duty planetary drive axle, and a drum-type brake system.

Safety features on the High-Capacity Electric Cushion include MD4 7” touch screen display for ultimate customization and advanced diagnostics and forklift information at your fingertips. This forklift also includes tilt steering columns, left-hand shift levers, low-height, and non-skid steps.

While productivity is important, the safety of your operators and those at your facility take precedence. Toyota’s High-Capacity Electric Cushion Forklift has various safety features that help keep operators safe while they work. These features include an emergency stop that instantly turns off the forklift's power. This product also includes an overhead guard that improves operator protection and promotes visibility.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the High-Capacity Electric Cushion Forklift.

This Product

Main product
High-Capacity Electric Cushion Forklift

Options / Accessories

Popular High-Capacity Electric Cushion Accessories

Make the most of your High-Capacity Electric Cushion Forklift by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Forward Camera

The front-view camera system provides the driver with a direct view of the floor in front of the truck, revealing dead spots and obstacles, preventing damage.

Public PNG Reach Stacker Close-up 3

Rear Camera

The rear-view camera system provides the driver with a direct view of the floor behind the truck, revealing dead spots and obstacles, preventing damage.

Rear Camera

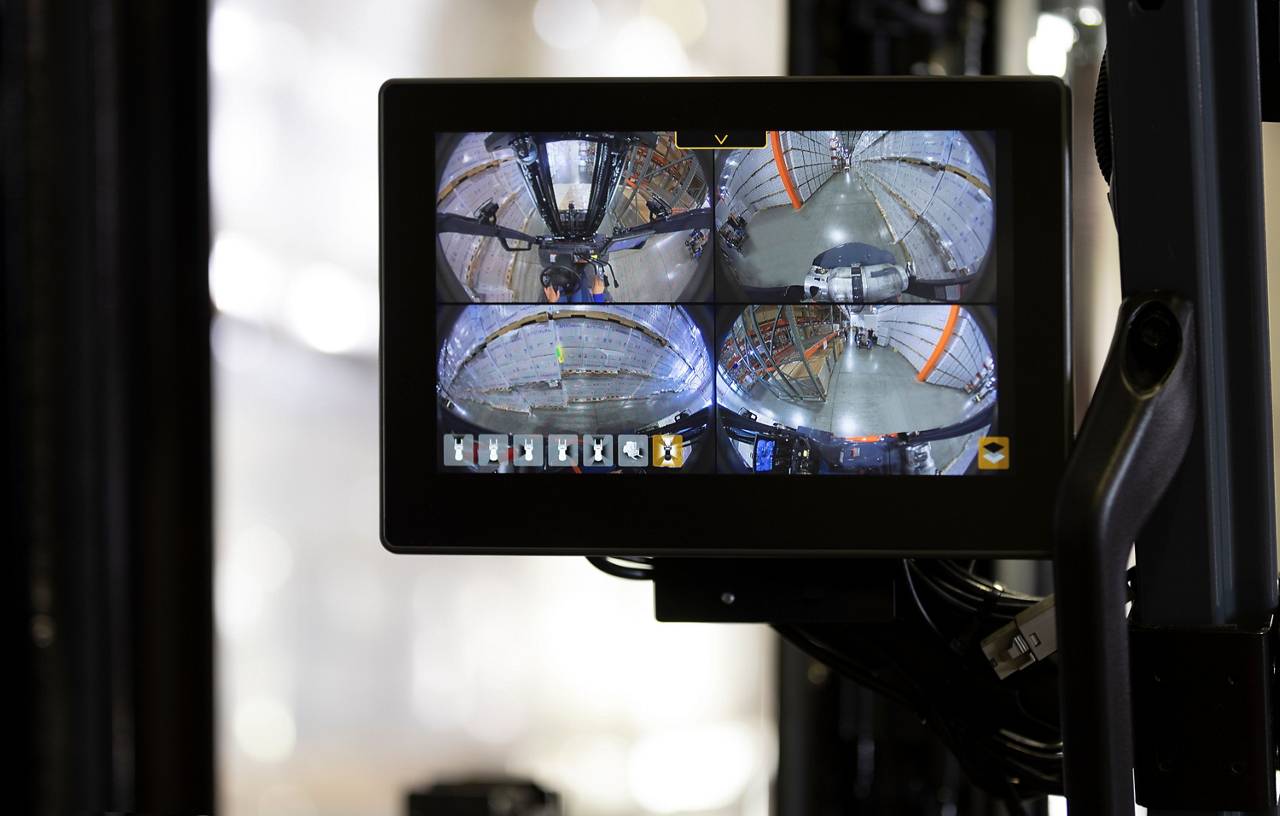

Dual Camera

The dual camera system provides the driver with a direct view of the floor in front, and back of the truck, revealing dead spots and obstacles, preventing damage.

Dual Camera
