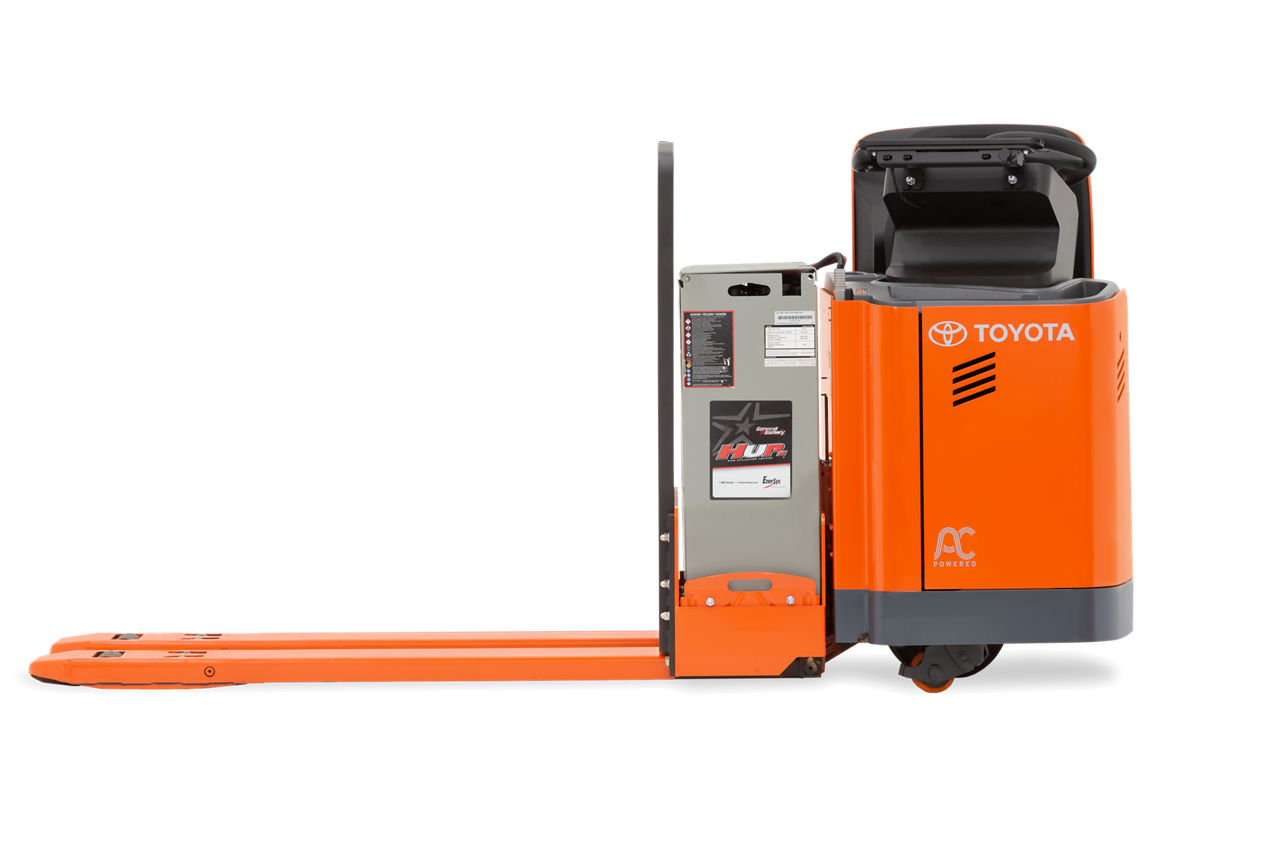

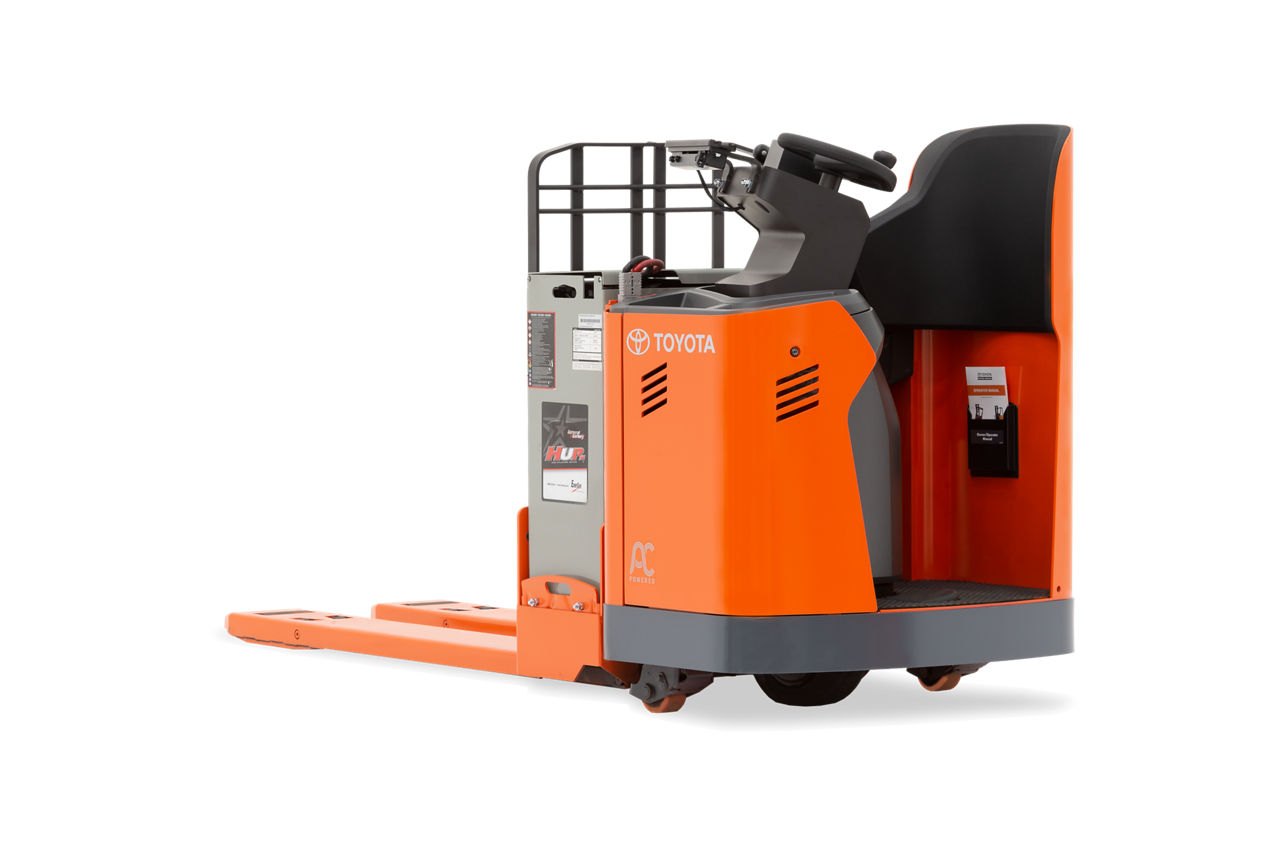

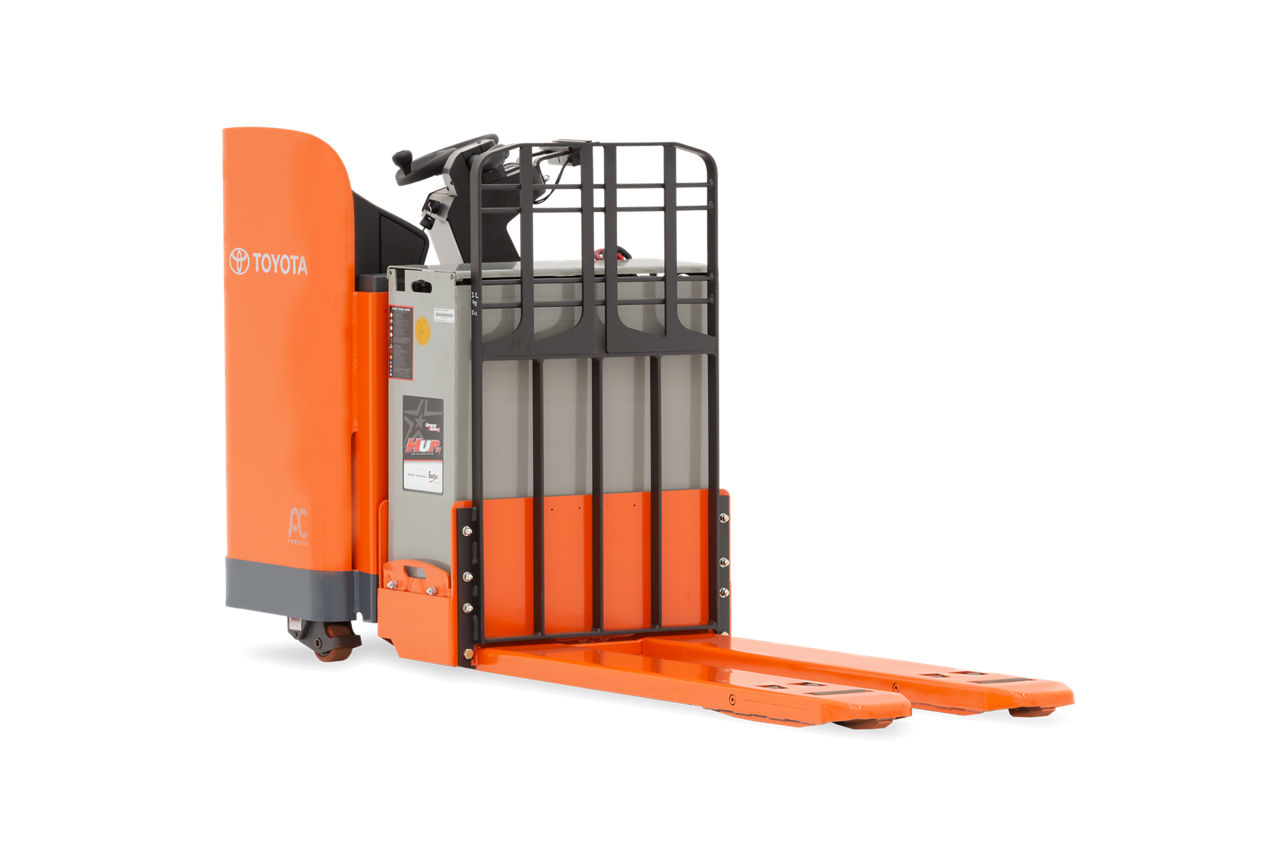

Enclosed End Rider Pallet Jack

Toyota's Enclosed End Rider makes traveling through your warehouse while loading and unloading products simple and easy. This Enclosed End Rider is the pallet-moving secret to productivity, efficiency, and uptime that you've been looking for. Designed with a steel-enforced undercarriage and stainless pins for reinforced strength to handle the heaviest of loads, the Enclosed End Rider is the perfect lift for delivering an impeccable performance so you can get the job done.

Special Features
  • 6,000-8,000 lb. Load Capacity
  • AC Drive Motor
  • Programmable Lift Capability

Specs

Enclosed End Rider Pallet Jack Specifications

Learn more about the current Toyota Enclosed End Rider Pallet Jack models that are available for purchase.

8,000

Lifting Capacity

(lbs.)

10"

Low Step Height

24

Electrical System

(V)

Overall Length

81.5 - 148.8 in.

Height

37.2 in.

Overall Width

40 in.

Enclosed End Rider Pallet Jack-2

Models for Enclosed End Rider Pallet Jack

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Gradeability Full Load (%) Basic Right Angle Stack (in.) Length (in.)
ER1-ES60 6,000 6.2 8 80.7 - 184.4 81.5 - 148.8
ER1-ES80 8,000 6.5 8 80.7 - 184.4 82 - 148.8

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

 Closed End Rider Beauty 3

Performance

Your Pallet Moving Partner

Toyota’s Enclosed End Rider Pallet Jack is designed with innovative ergonomics to maximize operator efficiency and productivity. The enclosed end rider makes traveling through your warehouse while loading and unloading products simple and easy. This lift comes equipped with electric power steering, which helps to lessen the amount of operational effort, leading to improved output and comfort shift after shift with lower energy consumption.

Enclosed End Rider Pallet Jack Features

Toyota’s Enclosed End Rider is designed with a reinforced steel ductile iron undercarriage which adds strength throughout the underside of the unit for added rigidity, and stainless pins for superior strength to handle the heaviest of loads. The Enclosed End Rider has an available fork height travel interlock option which helps reinforce proper operator training to keep the forks raised when traveling over docks and uneven surfaces by limiting travel speeds when the forks are lowered.

Operating in colder environments? Not a problem! Choosing the Enclosed End Rider’s cold storage option can help protect components from condensation and cold temperatures. Equipped with power steering, which helps lessen the amount of operational effort, the Enclosed End Rider leads to improved output and comfort day after day.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Enclosed End Rider Pallet Jack.



This Product

Main product
Enclosed End Rider Pallet Jack

Options / Accessories

Popular Enclosed End Rider Pallet Jack Accessories

Make the most of your Enclosed End Rider Pallet Jack by considering additional options and accessories. Toyota products can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best equipment that can help you with your company’s biggest material handling challenges.

Compartment Sensing System

The Compartment Sensing System uses sensors that are in the rear compartment. When the sensors are blocked, a tone will sound, a message will display, and the truck will decelerate.

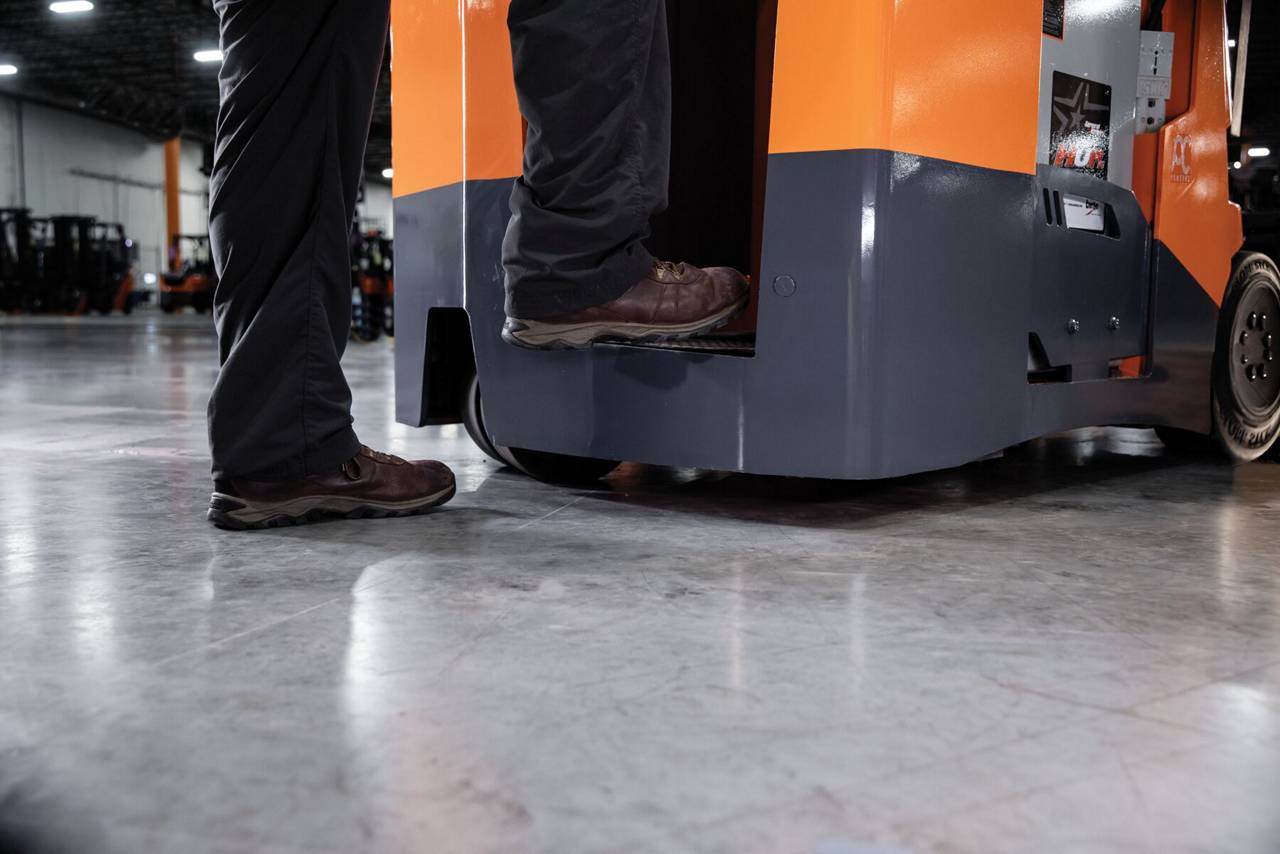

JPG Public Stand Up Rider Close-Up Step Height

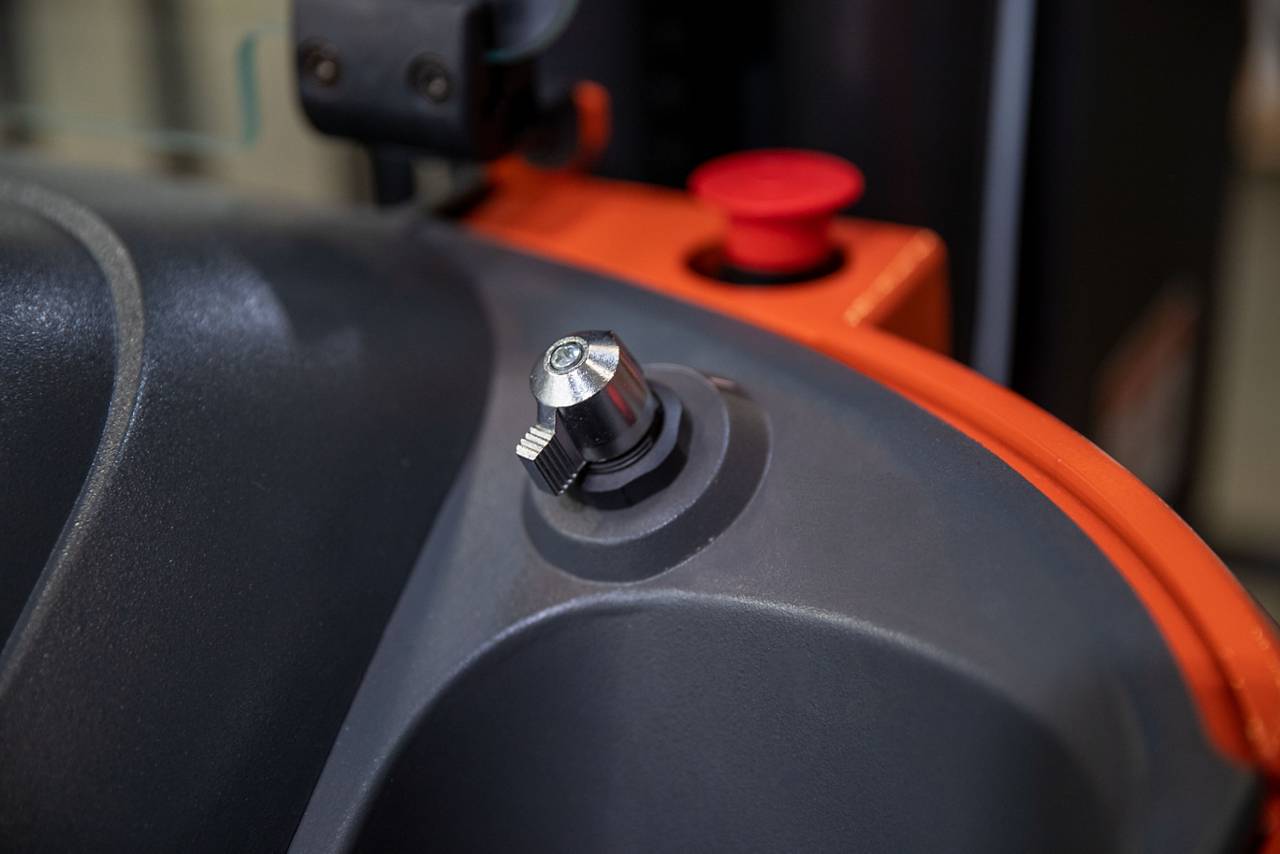

Keyless On/Off Switch

This option replaces the standard key switch with a toggle switch.


Cold Storage

This option provides components that allow the truck to be operated in cold storage applications (see above for specifications, components, and operating conditions).
