Pièces de la plus haute qualité

Les concessionnaires de chariots élévateurs Toyota sont un fournisseur de solutions de chariots élévateurs à guichet unique et à service complet.

Besoin d’aide ? Pour obtenir de l’aide ou de plus amples renseignements, communiquez avec votre concessionnaire Toyota local.


Service à la pointe de l’industrie

Augmentez votre productivité, votre disponibilité globale et la durée de vie de votre chariot élévateur.

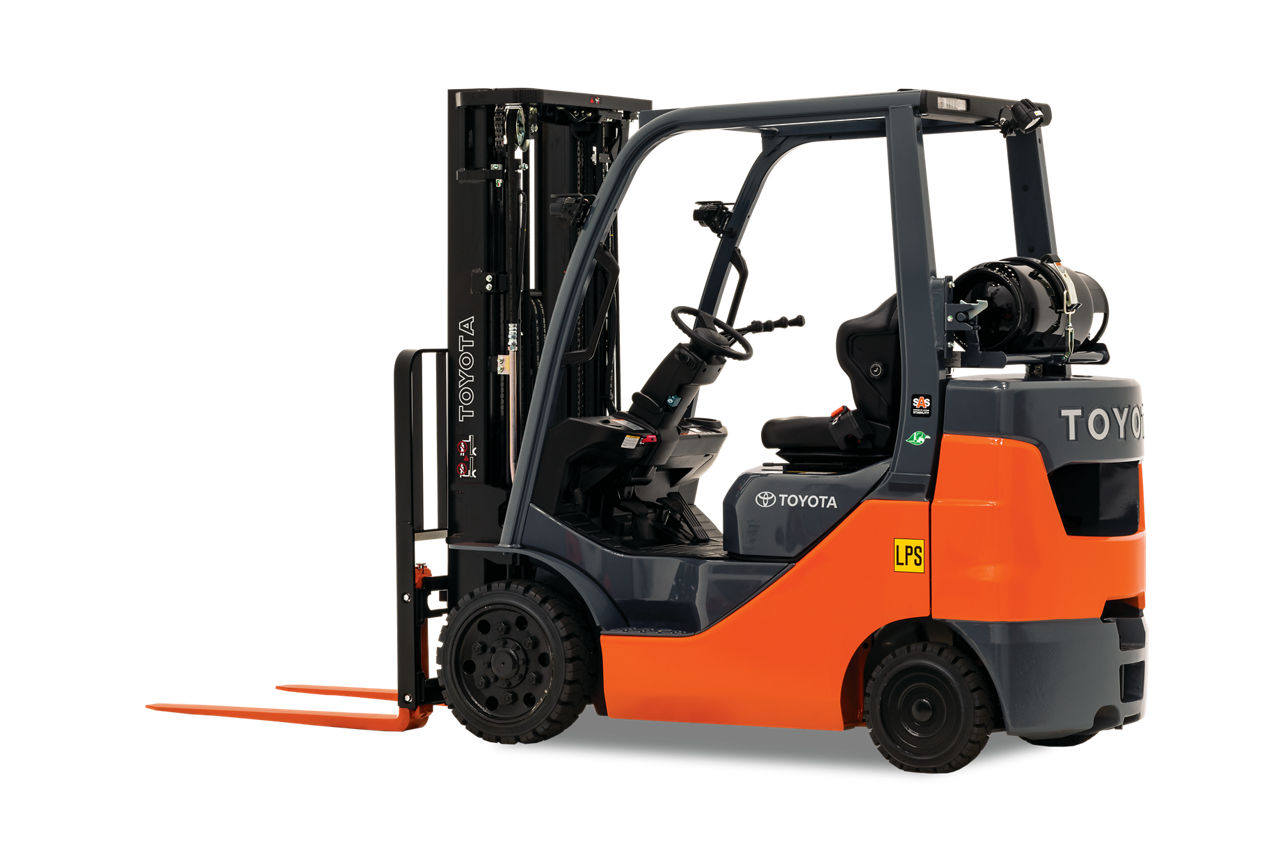

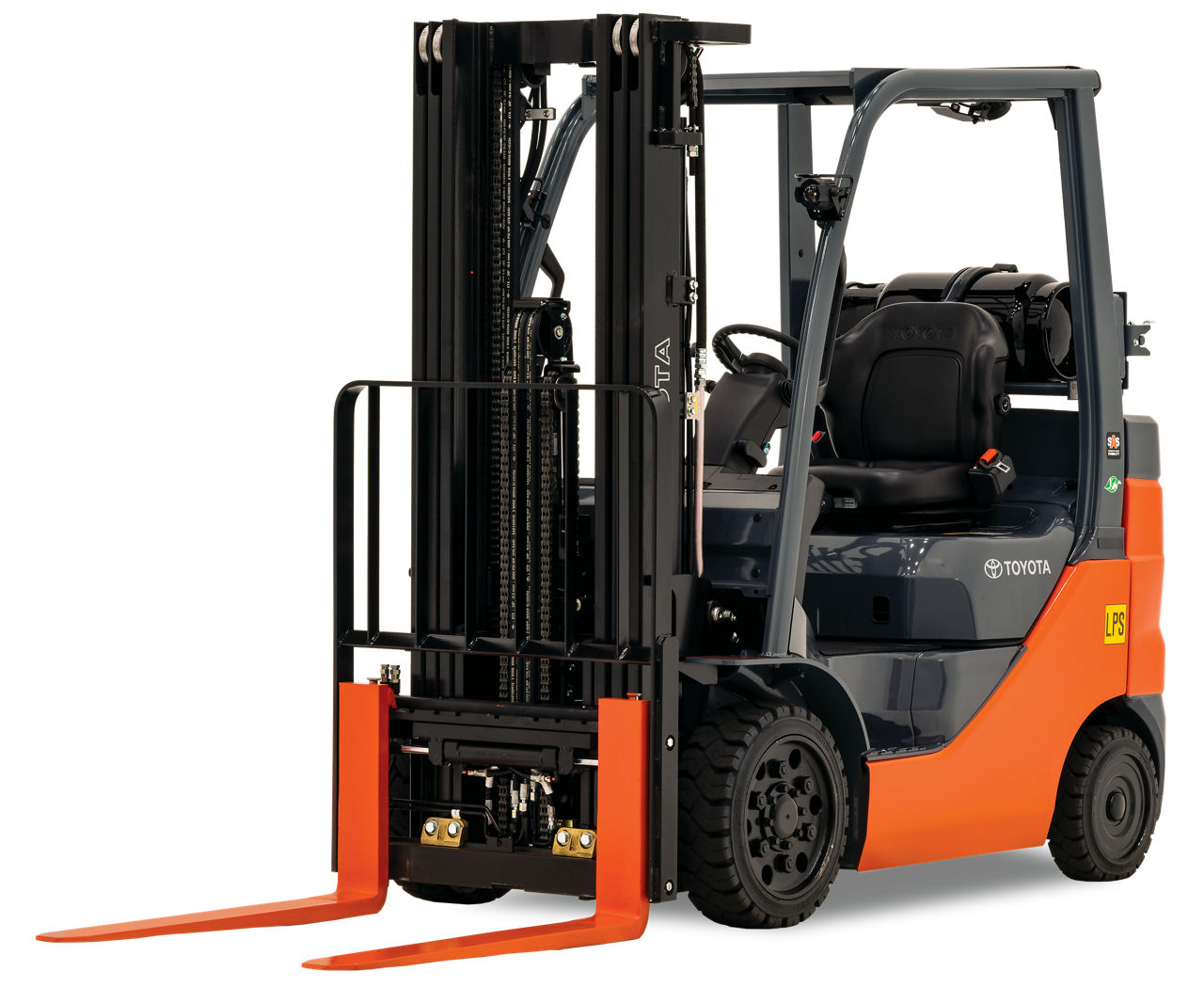

Chariot élévateur à coussin Core IC

Le chariot élévateur à coussin Core IC de Toyota est l’un des chariots élévateurs les plus populaires en Amérique du Nord. Les applications d’entreposage et de distribution, l’industrie automobile, les usines de fabrication générale et les magasins de détail utilisent souvent le coussin de circuits intégrés de base de Toyota pour son extrême polyvalence. Assez puissant pour soulever jusqu’à 6 500 lb tout en étant capable de naviguer dans des allées de 12 pieds, le chariot élévateur Core IC Cushion est un chariot élévateur polyvalent fiable.

Caractéristiques spéciales
  • Capacité de levage de 3 000 à 6 500 lb
  • Système de stabilité active (SAS) ™
  • Compatible avec le capteur SEnS Smart Environment Sensor®

Specs

Core IC Cushion Forklift Specifications

Learn more about the current Toyota Core IC Cushion Forklift models that are available for purchase.

3,000 - 6,500

Load Capacity

(lbs.)

10.9

Travel Speed Full Load

(MPH)

LPG / Dual Fuel

Fuel Type

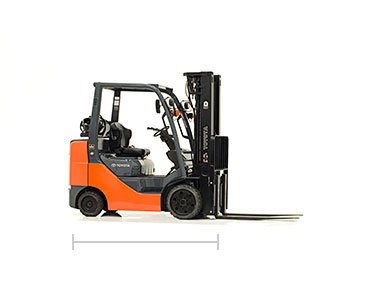

Length to Forkface

82.3 - 98.6 in.

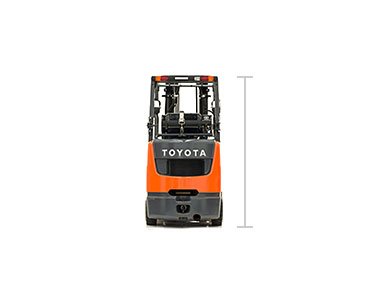

Overhead Guard Height

80.1 - 80.7 in.

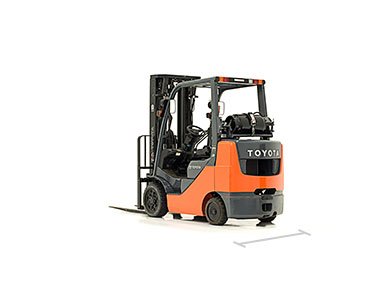

Overall Width

37.2 - 43.7 in.

Models for Core IC Cushion Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
40-8FGCU20 4,000 10.6 120 35 92.3
40-8FGCU25 5,000 10.6 120 30 94.3
40-8FGCU30 6,000 10.6 98 24 97.5
40-8FGCU32 6,500 10.6 98 24 98.8
50-8FGCSU20 4,000 10.9 110 35 87.6
50-8FGCU15 3,000 10.9 110 43 83.5
50-8FGCU18 3,500 10.9 110 40 86
50-8FGCU25 5,000 10.6 120 30 94.3
50-8FGCU30 6,000 10.6 98 24 97.5
50-8FGCU32 6,500 10.6 98 24 98.8
50-8FGCU20 4,000 10.6 120 35 92.3

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Performance

Versatility to Get Things Done

At Toyota, we know your operation is facing the challenge of increasing demands and need forklifts that thrive, even with additional use. Toyota’s Core IC Cushion Forklift is an industry-leading, multi-use forklift. Toyota’s innovative System of Active Stability (SAS)™ comes standard on all Core IC Cushion models.

Core IC Cushion Forklift Features

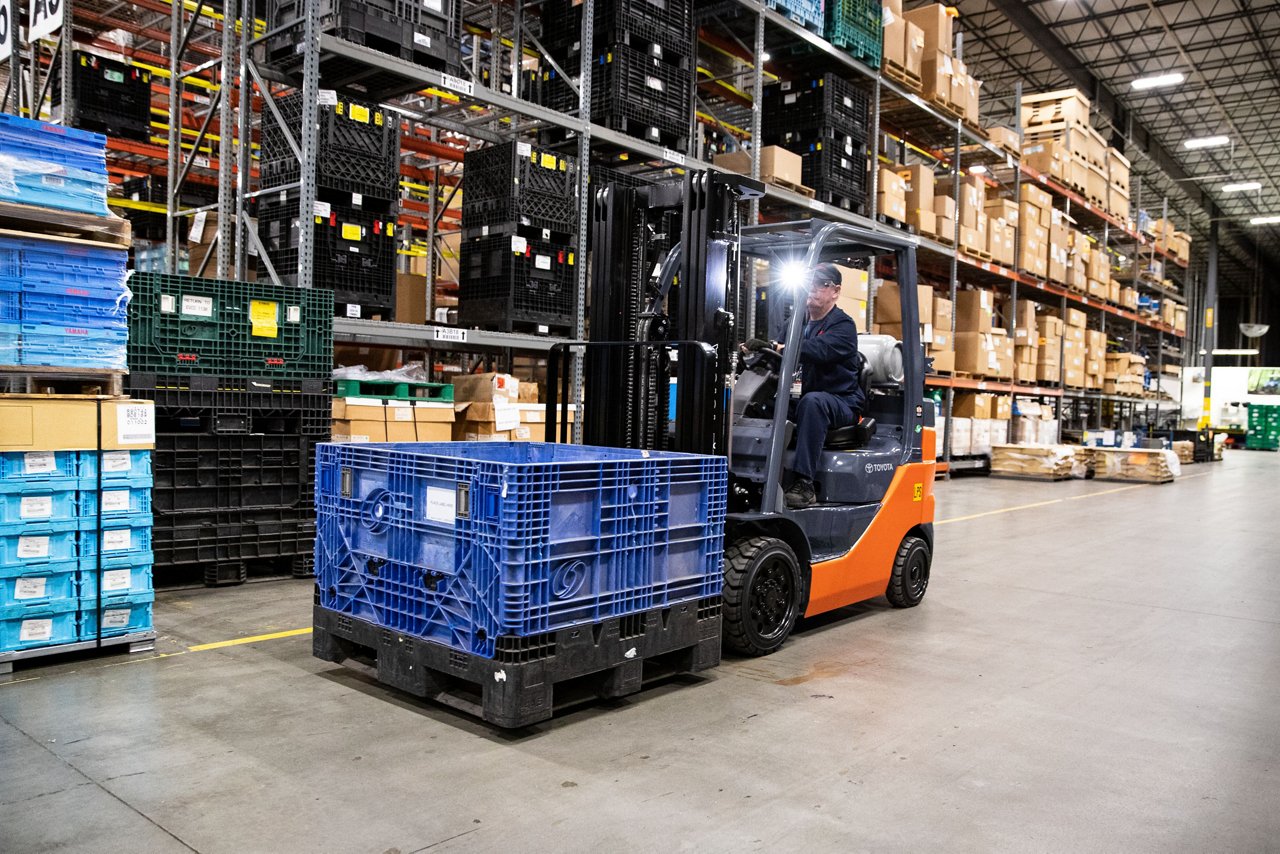

Strong horsepower and a compact design. It’s a winning combination that makes the Core IC Cushion Forklift not only a popular choice for nearly all indoor applications but one of the top-selling forklifts, period. A compact chassis teamed up with a tight turning radius maximizes maneuverability throughout the warehouse, allowing operators to lift up to 6,500 pounds and still nimbly navigate 12-foot aisles.

Forward, up, back. Any way you look, operators appreciate the clear, open sight lines of the Core IC Cushion. Mast hosing is tucked away, overhead guard bars are oriented for maximum visibility, and the mast crossmember doesn’t block your view of the fork tips. The standard LCD multifunction display, conveniently located on the dash, features QR code diagnostics for ease of access to operational and performance data.

Legendary Toyota quality means more productivity over the lifecycle of your forklift, along with lower repair costs. The Core IC Cushion Forklift provides several service features. These features include:



  • Easy-access, no tools required floorboard
  • Engine hood assist damper with lock
  • Externally mounted hydraulic oil return filter
  • Air cleaner discharge valve
  • Easy-lift engine hood
  • Exclusive QR code diagnostics

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Core IC Cushion Forklift.

Ce produit

Main product
Chariot élévateur à coussin Core IC

Critiques
Il n’y a pas d’avis sur ce produit pour le moment

Options & Accessories

Popular Core IC Cushion Forklift Accessories

Make the most of your Core IC Cushion Forklift by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

SEnS

Operator assistance system designed to increase awareness of surrounding pedestrians and objects.

Public_JPG-SEnS_Close-Up_Camera_1

360 Degree Operating Camera

The 360 Operating Camera gives you the ability to view multiple areas around the forklift to assist in tight environments.

Moving-Mast-Reach-Truck-Close-Up-Multifunction-Controls

EZ Control Joystick

Puts all  controls, horn button, and travel directions at your fingertips. An axis-based pivot combined with strategic button placement and smooth operation puts operators comfortably in control.
